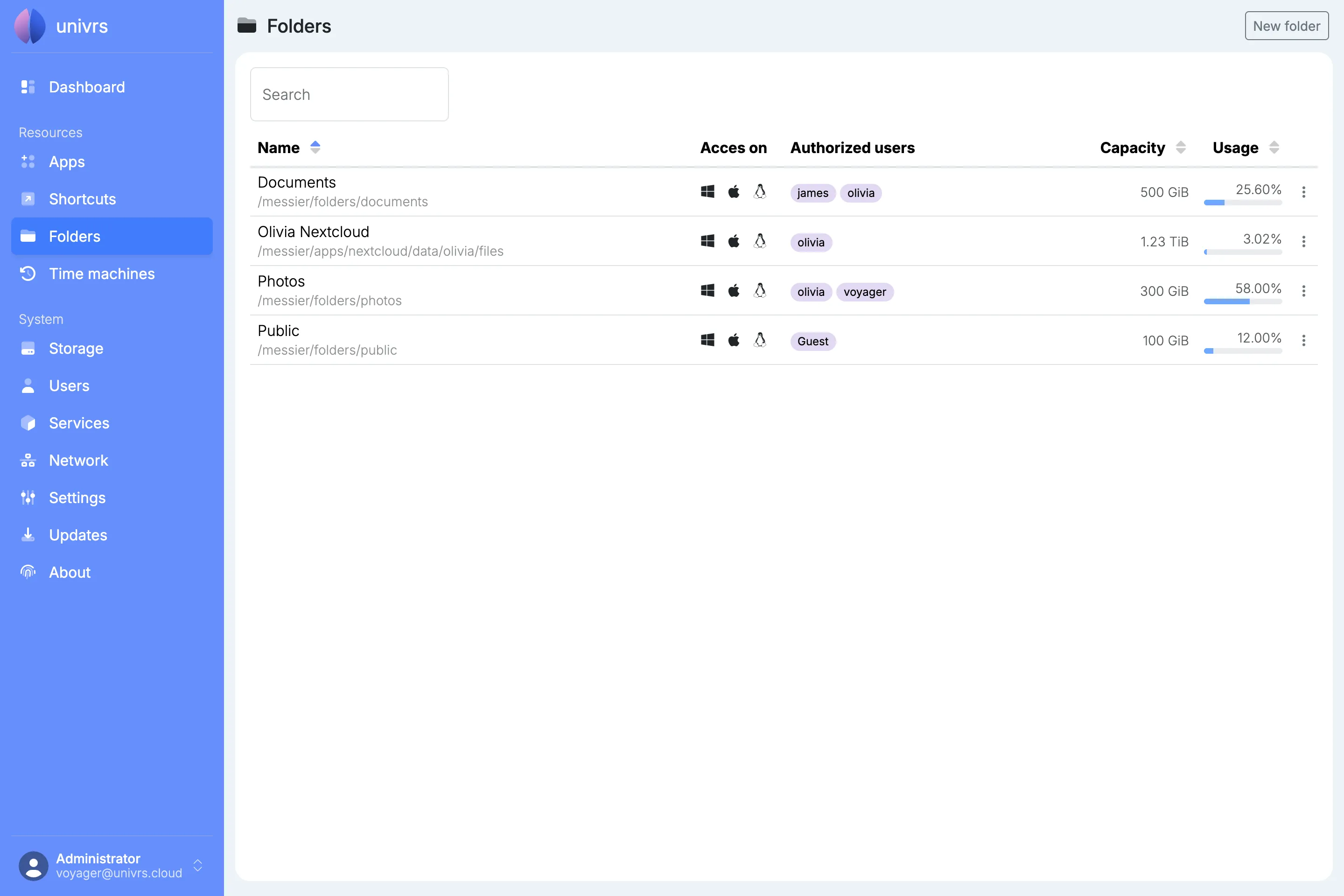

Folders
Folders are shared folders on the node that the computers on your local network can open, whether they run Windows, macOS or Linux. Users reach them with their node username and password, unless the folder is open to everyone on the network.

For each folder, the list shows its name and path, how many computers have it open right now, the users who can reach it, how much data it receives and sends per second, its capacity, how much of it is used and its snapshots. Hover over the number of computers to see who is connected and from which address. The icon in the snapshots column says whether snapshots are enabled, paused or disabled, followed by the space they take up; hover over it for details. Sort the list by name, traffic, capacity, usage or snapshots with the arrows in the column headers, and use Search to find a folder by its name, path or users.

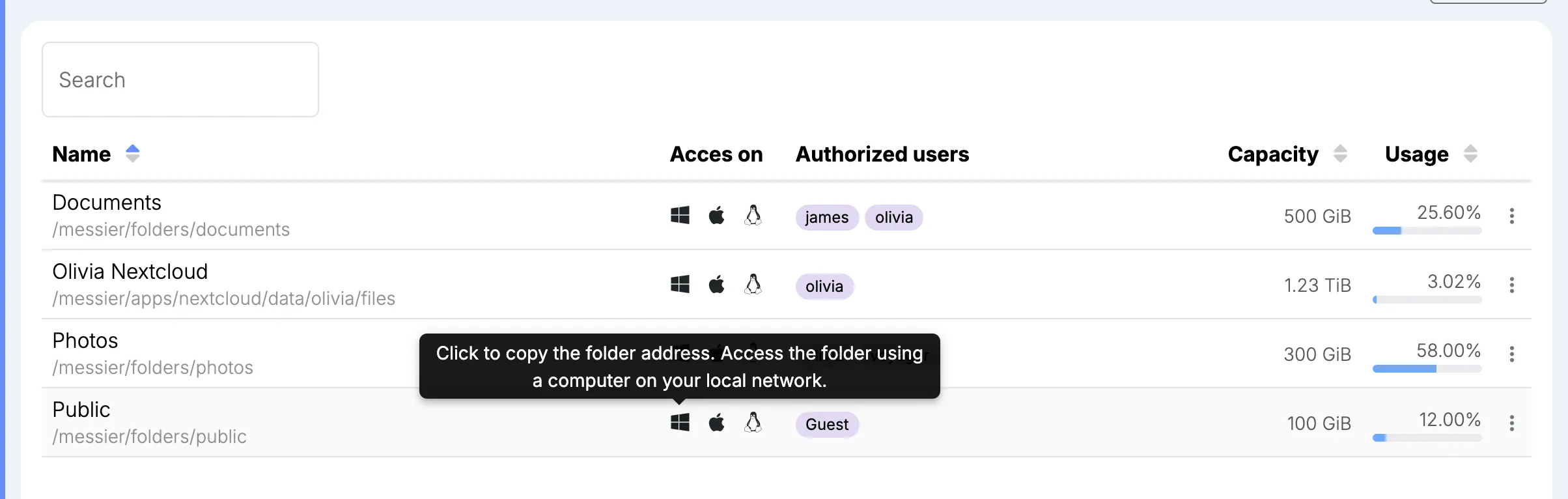

Opening a folder
Section titled “Opening a folder”Open the folder and, under Authorized users, select the Windows, Apple or Linux icon next to your user to copy the folder’s address for that system:
- Windows:
\\192.168.1.10\documents, to paste in File Explorer’s address bar. - macOS:
smb://[email protected]/documents, to paste in Finder after pressing ⌘K. - Linux:
smb://[email protected]/documents, to paste in your file manager’s address bar.
The address is the virtual IP, the address the node shares with its cluster.

When asked, enter your node username and password. A folder marked Guest has open access: anyone on your local network can open it and change its files, without a username or password.
On a Mac, the node also appears in Finder’s sidebar under Network, by the name of its cluster, for example virgo. Select it and log in to see the folders you can reach.
The computer reaches the node over your local network only, so folders open while it is on the same network as the node.
Locking a user stops them from reaching every folder, until they are unlocked.
Scanning to a folder
Section titled “Scanning to a folder”A folder is also a good place for a scanner or multifunction printer to save its scans. A device that can scan to a network folder (often called scan to folder or scan to SMB) saves each scan straight to the node, where everyone who can reach the folder finds it.
Give each device a user of its own, then use the folder’s Authorized users to decide two things at once: which devices can save scans there, and which people can open them. A folder for the accounting office, for example, lists that office’s scanner and the people who work there, and nobody else.
In the device’s settings, enter the node’s address and the folder’s name, as they appear in the folder’s address, together with the device’s own username and password. If a device is replaced or lost, locking or deleting its user cuts its access without touching anyone else’s.
This works with Nextcloud too. Share an existing path, such as a Nextcloud group folder or a user’s files, and authorize the device on it: the scans land in Nextcloud, where the same people find them from their browser or phone.

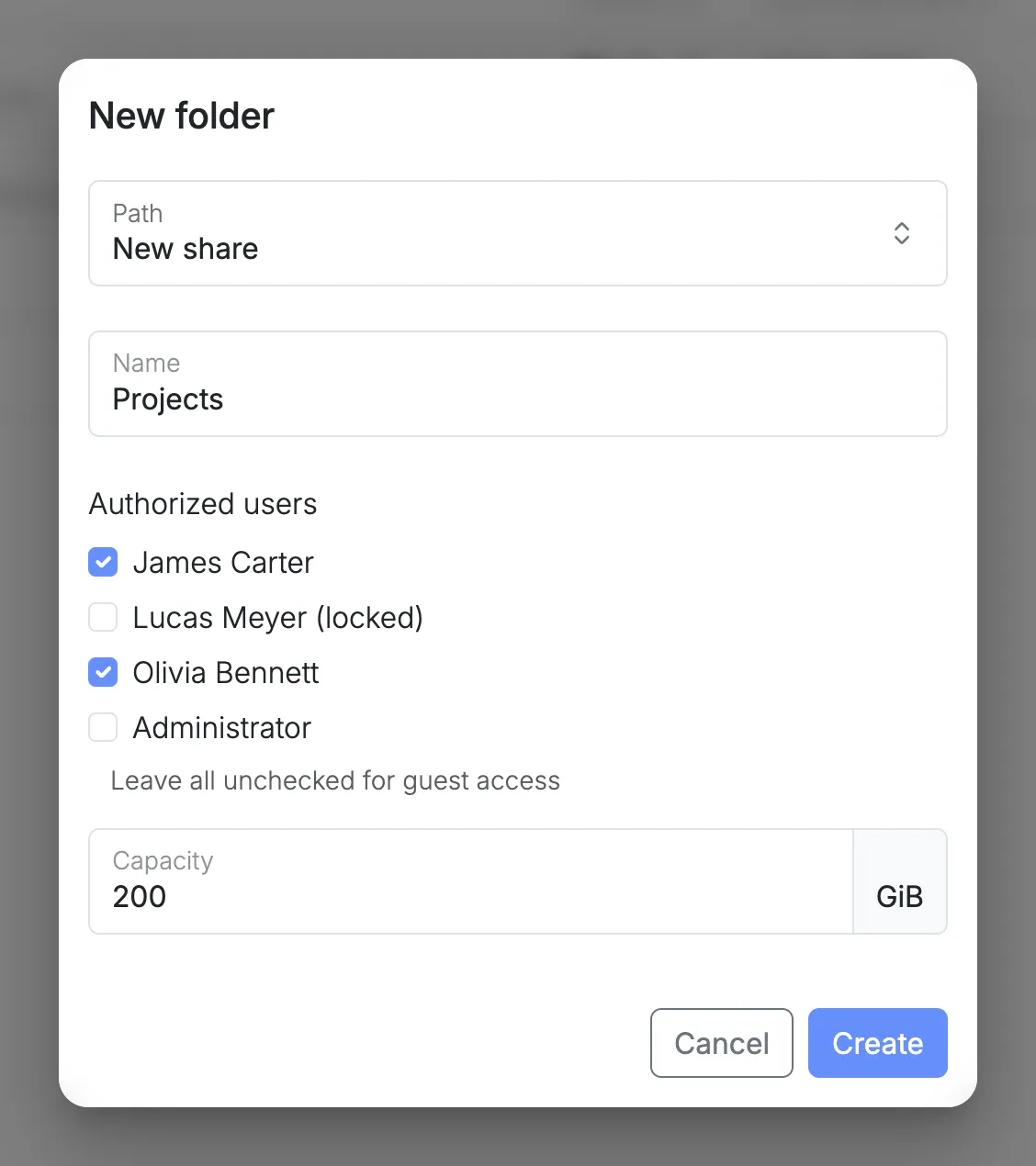

Adding a folder
Section titled “Adding a folder”Select New folder, then enter:
- Path: keep New share to create an empty folder, or choose an existing path to share what is already there.
- Name: what the folder is called.
- Authorized users: the users who can reach it. Leave them all unchecked for Guest, open access for anyone on your local network.
- Capacity: how much space the folder can take up, in GiB. Only for a new share.
- Take snapshots: keep snapshots of the folder’s files. Only for a new share.

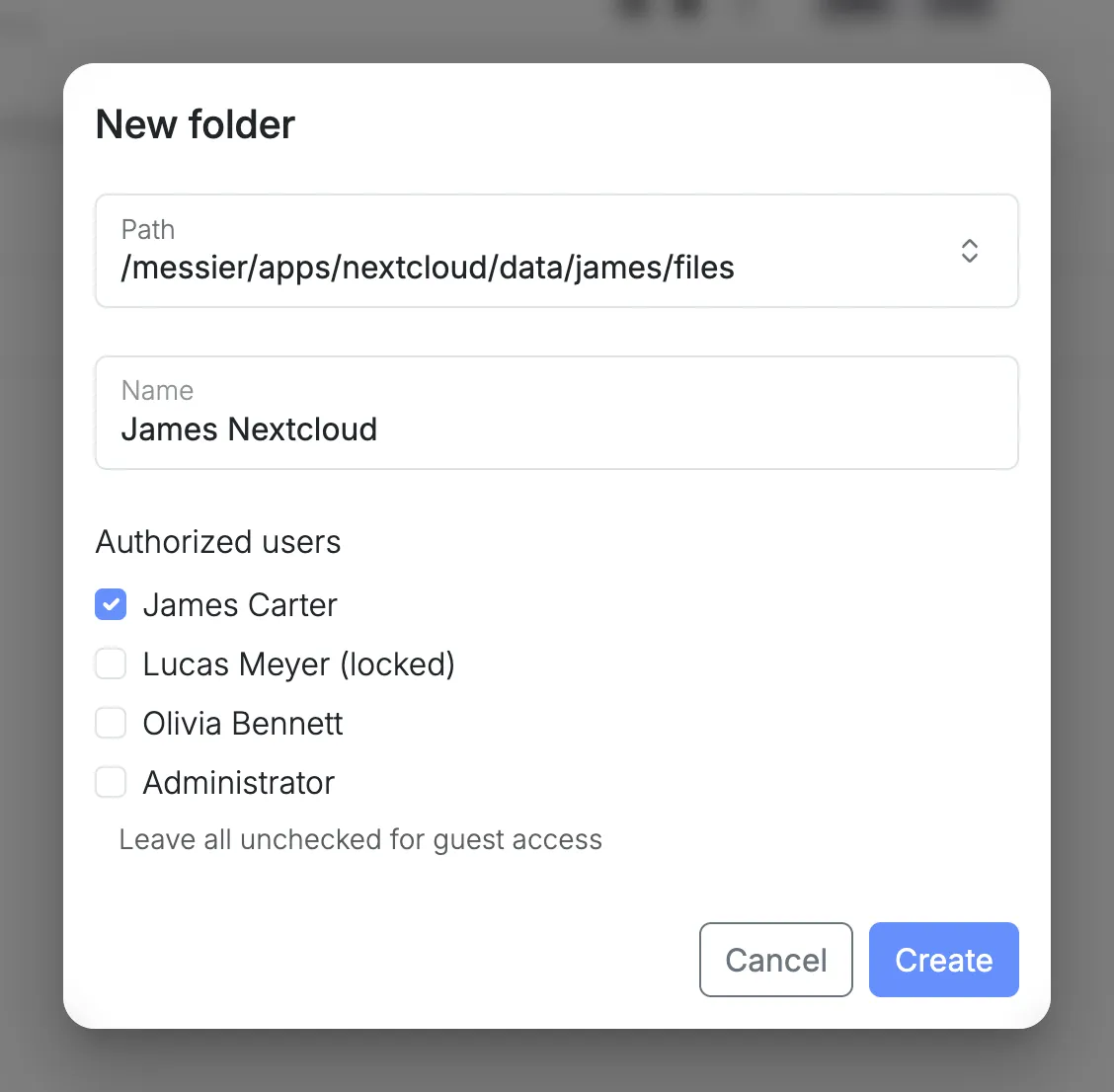

Sharing an existing path
Section titled “Sharing an existing path”The existing paths are places on the node that already hold files, such as a Nextcloud user’s files or a Nextcloud group folder. Sharing one lets you open those files from your computers too.

Such a folder has no capacity of its own. It shares the space of the place it lives in, which is the capacity the list shows, while its usage counts only its own files.
Folder details
Section titled “Folder details”Select a folder in the list to see it in detail.

- Usage: the folder’s capacity, how much of it is used and how much is free. Space saved shows how much space compression saves. For a folder with snapshots, the bar splits the used space into the folder’s Data and its Snapshots.
- Authorized users: the users who can reach the folder, each with the icons that copy the folder’s address for Windows, Apple or Linux. The Apple and Linux addresses include the user’s name.
- Clients: the computers that have the folder open right now, with the user, the computer’s address and how much data the folder receives from it and sends to it per second.
The Snapshots tab shows the folder’s snapshots and how many it has. Select the arrow in the top left corner to go back to the list.

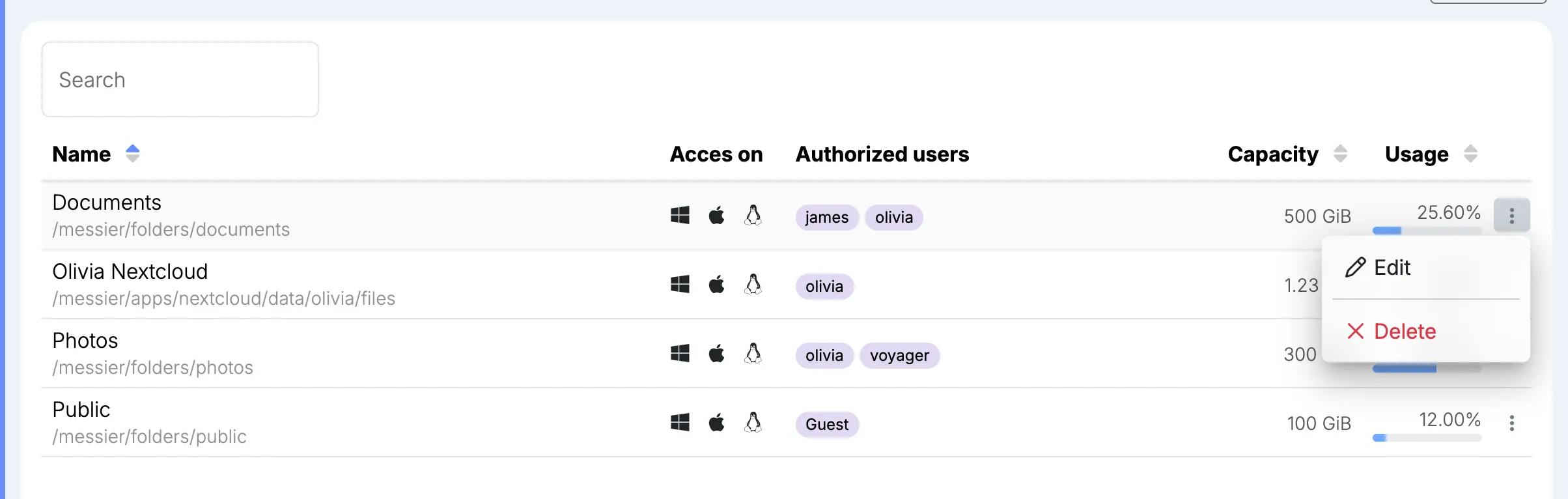

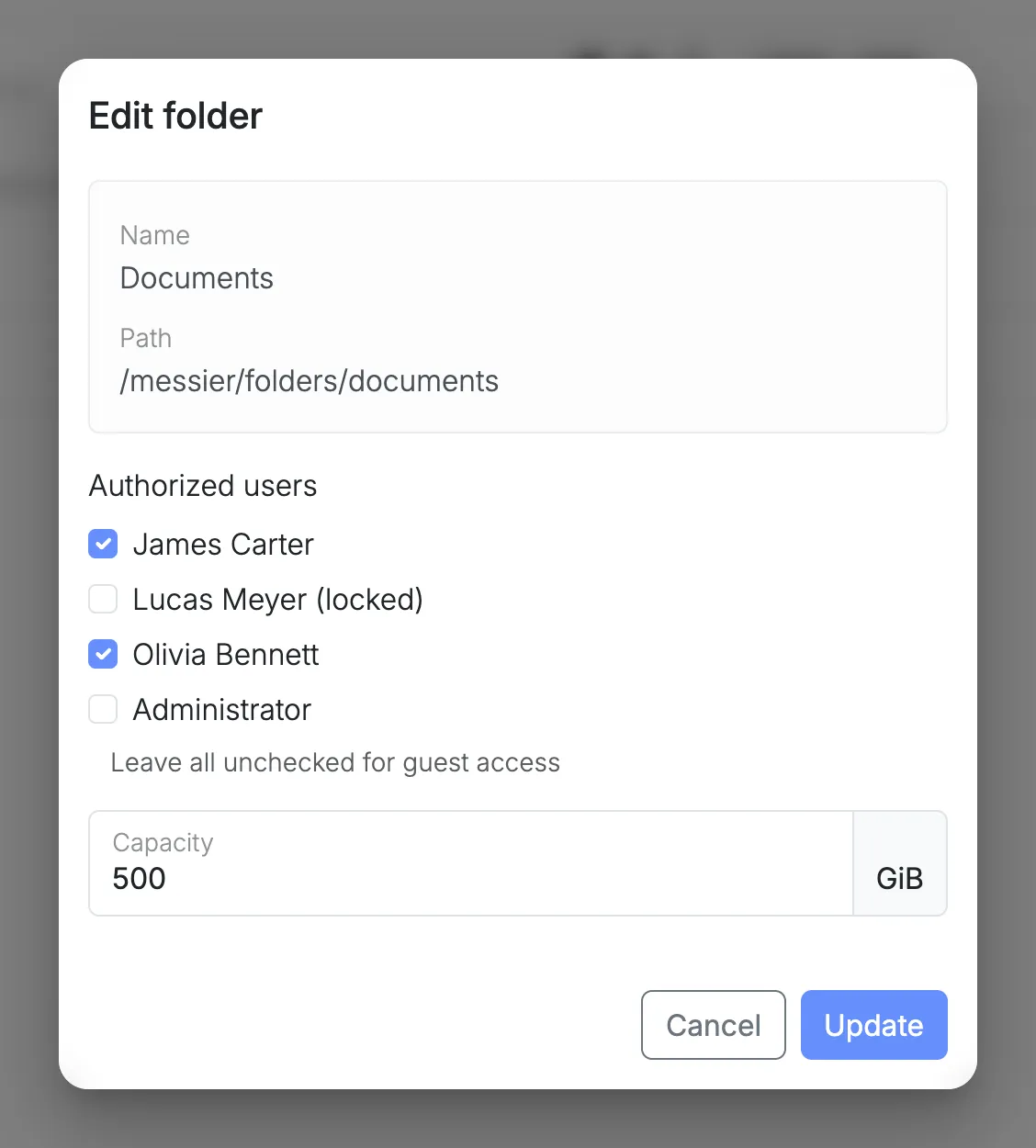

Editing or deleting a folder
Section titled “Editing or deleting a folder”Open a folder’s menu in the list:

- Edit: change the authorized users, or the capacity of a new share. The name and path stay the same.
- Delete: permanently delete the folder and every file in it.
- Remove: for a folder on an existing path, stop sharing it. Its files stay where they are.
In a folder’s details, the pen edits the folder and the menu next to it deletes or removes it.

While a change is being applied, a spinning gear takes the place of the menu.
Snapshots
Section titled “Snapshots”A new share keeps snapshots of its own, unless Take snapshots was cleared when it was added. A folder on a Nextcloud user’s path has Nextcloud’s snapshots. Either way, the folder’s files can be searched, browsed and restored from the folder itself. See Snapshots.

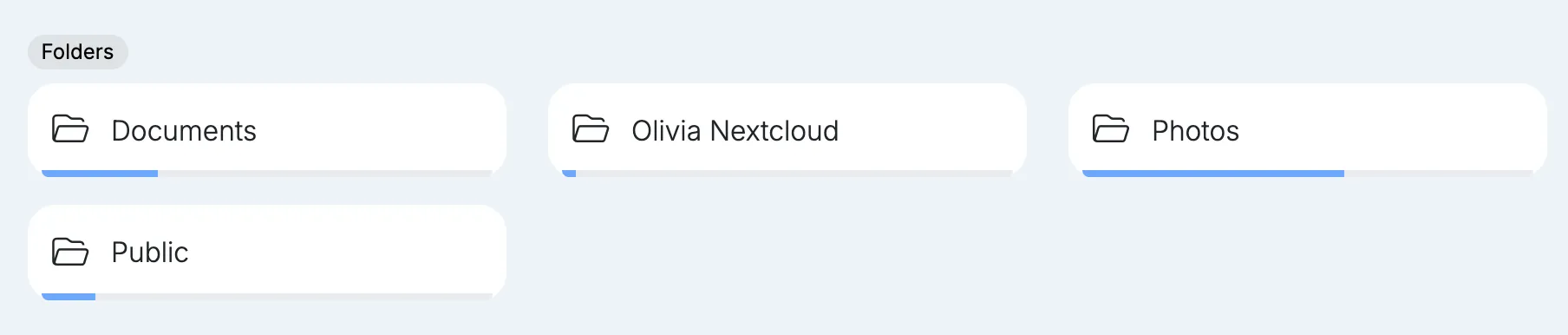

On the Dashboard
Section titled “On the Dashboard”The Dashboard lists the folders too, with a bar showing how full each one is.
